Defining formal languages is a tricky business. We need another language to do it; a metalanguage. Crazy stuff...

We are learning...


So that we can ...



Two computer scientists in the late 1950's developed BNF to help define the structure of the programming language Algol.


Backus-Naur Form is used because defining the syntax of a formal language using a regular expression is very tedious for languages with large alphabets. It would be virtually impossible to use RE to define the Python programming language, for instance.

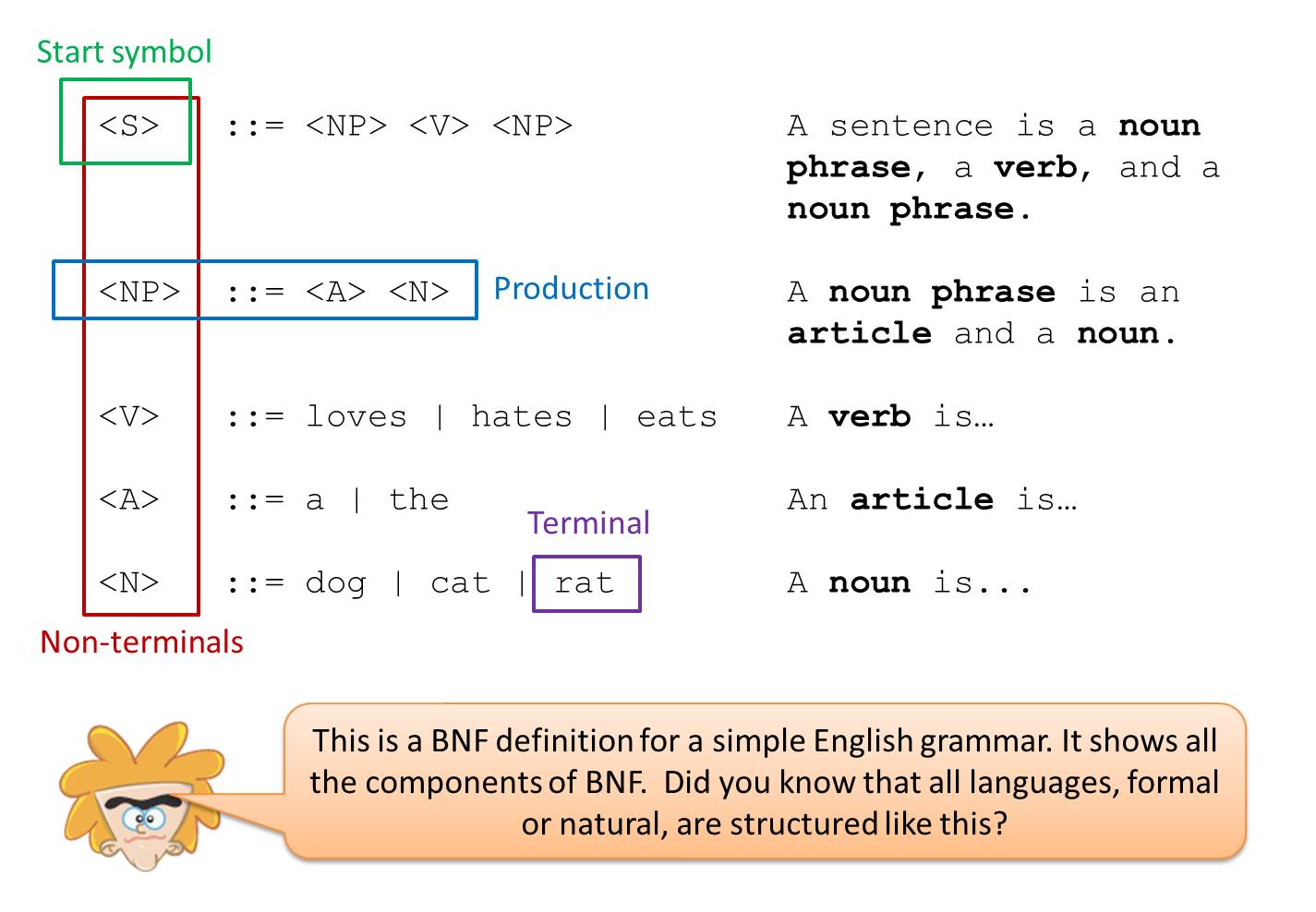

Considering the above example, a BNF grammar consists of 4 parts ...

Terminals are the smallest units of syntax in a grammar. The alphabet. There are atomic and cannot be defined in terms of anything else;

A statement written in the BNF metalanguage;

A non-terminal symbol is not part of the alphabet and is further defined in another production. Non-terminals take the place of larger pieces of syntax from a grammar;

There is a special non-terminal called the start symbol which represents the highest level of the grammar; the top of the tree as it were.


Non-terminals are defined using production rules. The components of a production rule are...





The left hand side of a BNF production is always a single non-terminal whilst the right hand side can consist of any combination of terminals and non-terminals (an expression).

<meta-variable> ::= expression

For example, a full definition of signed and unsigned numbers in BNF uses the following productions...

<signed_real> ::= -<unsigned_real>|<unsigned_real>
<unsigned_real> ::= <integer>.<integer>
<integer> ::= <digit>|<digit><integer>
<digit> ::= 0|1|2|3|4|5|6|7|8|9

The grammar is a set of rules which explain how to build a 'parse tree'. A parse tree can be used to generate valid sentences in the language or to check whether sentences are valid in the language. When writing parse trees, we always work from the start symbol down to the terminals. The resulting string is read from left to right.

Example: Writing a valid English sentence.




Example: Checking the syntax of a mathematical expression - syntactical analysis.

The following BNF rule defines a simple mathematical expression.

<exp> ::= <exp>+<exp>|<exp>*<exp>|(<exp>)|a|b|c

This is equivalent to 6 separate productions ...

<exp> ::= <exp>+<exp>
<exp> ::= <exp>*<exp>
<exp> ::= (<exp>)
<exp> ::= a
<exp> ::= b
<exp> ::= c

If we check the validity of a string, we work from the outside of the string to the inside, choosing the most suitable production each time working down from the start string. If we cannot choose a suitable production or a terminal, the string is not valid.




An alternative is to use bottom-up or shift-reduce parsing to examine the string to see if it is indeed part of the language we have defined with the BNF. This is the reverse of the technique of drawing the parse tree we have just seen. We start with the sentence and work up to the start symbol.

Time to get dull

Those of you who have been to the Keswick Pencil Museum will be fascinated to discover the connection to context-free grammars. Here is a set of BNF rules which define the structure of the 'pencil hardness' grammar. I've numbered the productions so I can refer to them in the example which follows.

<lead_hardness> ::= <simple_hardness>|<scale_of_hardness>
<scale_of_hardness> ::= <numeric_value><simple_hardness>
<simple_hardness> ::= H|B|F|HB
<numeric_value> ::= 1|2|3|4|5|6|7|8|9

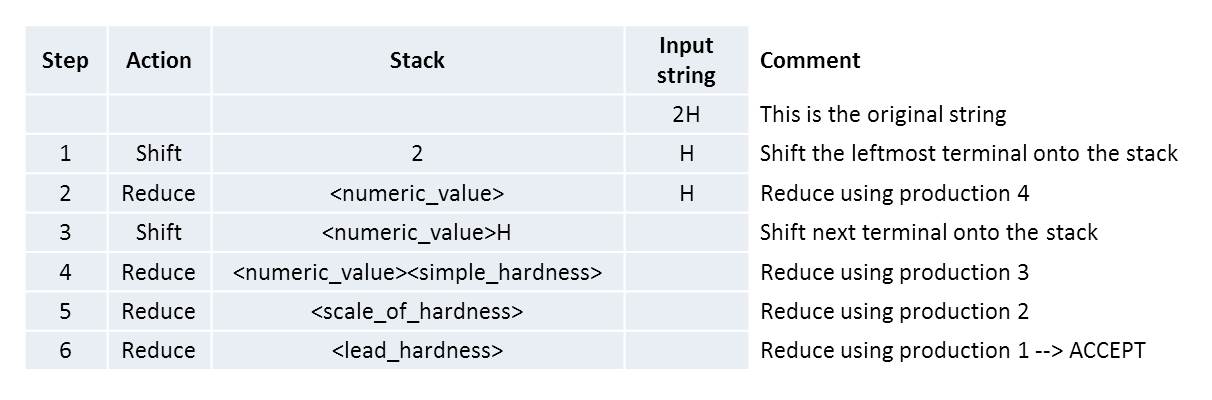

Let's try to prove that 2H is a valid lead hardness using the shift-reduce technique.

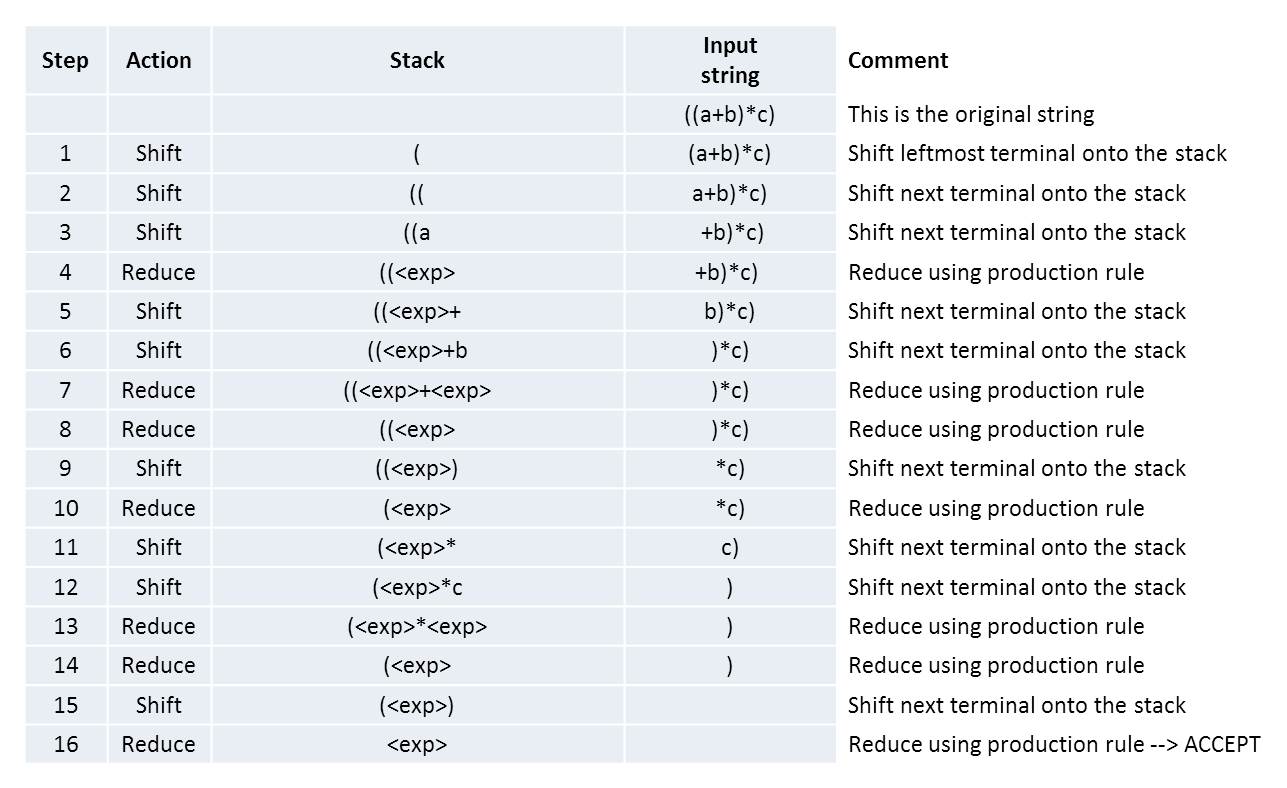

Here is another example using the simple mathematical expression grammar.

<exp> ::= <exp>+<exp> | <exp>*<exp> | (<exp>) | a | b | c

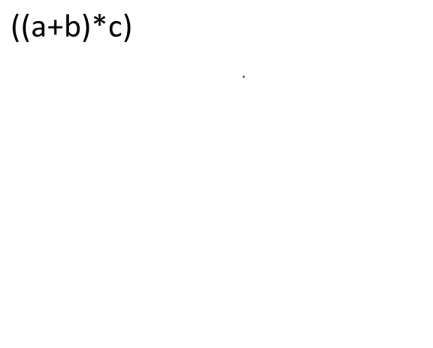

We'll prove that

((a+b)*c)

is a valid mathematical expression using bottom-up parsing.


Now time for some more questions to see if you 'get it'!





For complex grammars, BNF is too restrictive. Extended BNF, or EBNF, adds regular expression style notation...


For instance, the EBNF definitions of the signed and unsigned numbers uses the following productions ...

signed_real = ("-" | "+") unsigned_real;
unsigned_real = integer "." integer;
integer = digit {digit};
digit = "0..9"

;

Note that EBNF is no more powerful than BNF, just more convenient. Any EBNF production can be written in BNF, it just might look a lot more complicated.




Conveniently, productions rules aren't the only way of representing grammars. Allow me to introduce 'railroad' or 'syntax' diagrams. Syntax diagrams are an alternative way of defining the syntax rules of a language. They can even be used to describe a subset of the English language.

The following EBNF production ...

Syntax = S(Y(N(T(A(X|ctic|gma)|he(sis|tic))|o(nym|(p(sis|tic))))|stem[[at]ic])|em(an|iom)tic);

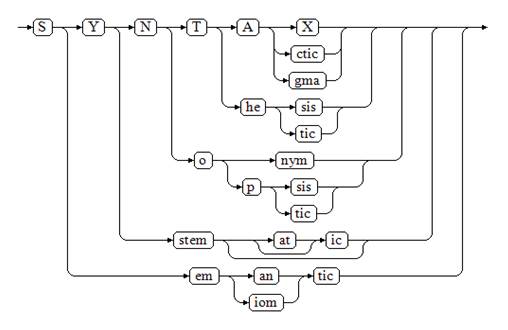

...could be used to generate this syntax diagram.

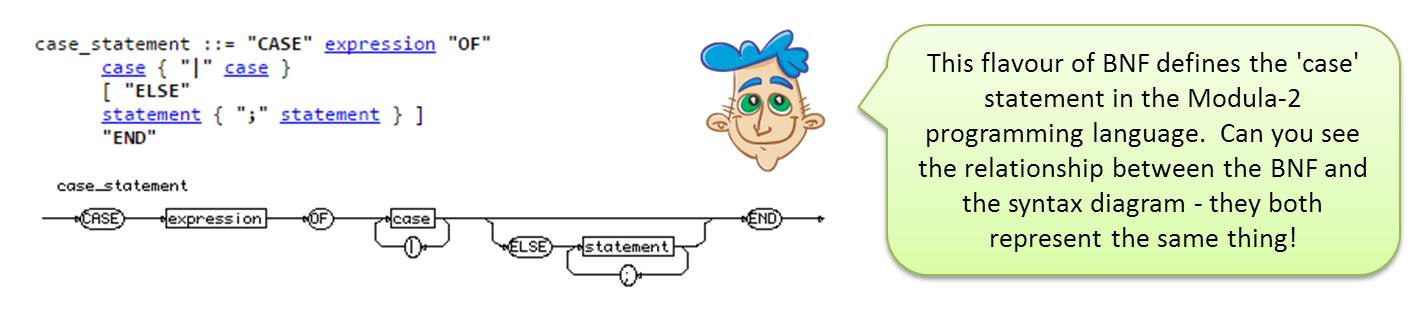

This is an example of a programming statement which is defined both as a BNF grammar and a syntax diagram. Look carefully...

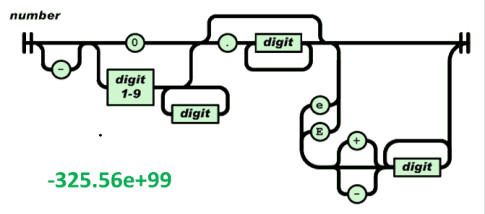

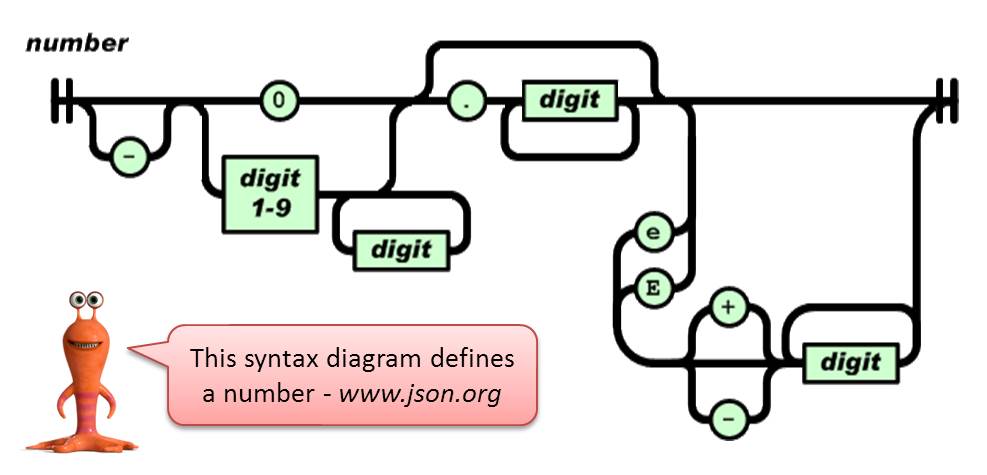

Modern programming languages still use syntax diagrams to define their structure. For instance, the following syntax diagram is from the JSON (JavaScript Object Notation) website...


If you can get from the left hand side to the right hand side whilst parsing the number (in this case) and not leaving the lines, the the number is valid as shown in the following beautiful giffy example...




We can't get away without setting some challenging questions can we?

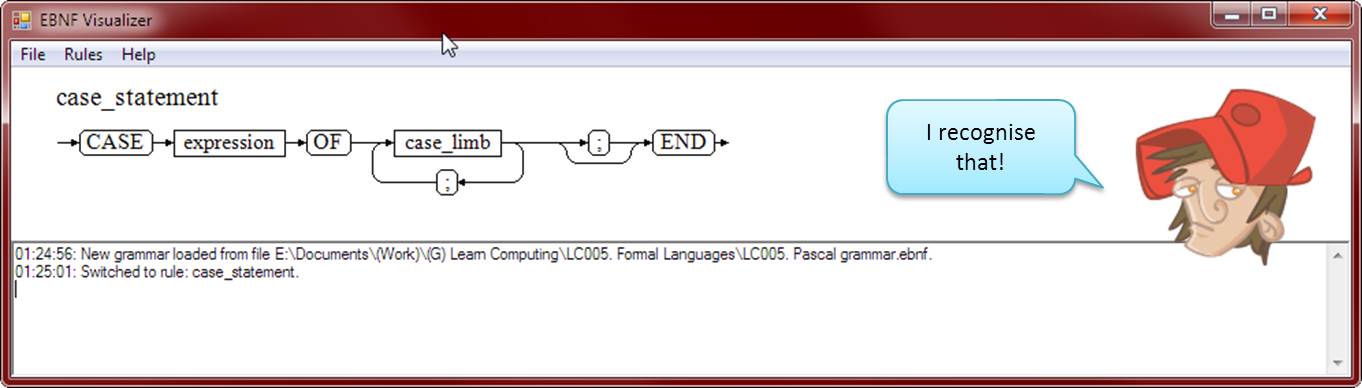

There is a free piece of software called 'EBNF Visualiser' which is available to download for free from a 'Not secure' website (don't worry, it's fine). I have also provided you with a number of 'grammars' in .ebnf format...
